HV · 01

High Voltage

Battery pack design, power electronics, and everything that keeps the car's high-voltage systems safe.

The High Voltage subteam designs and builds the car's battery pack and how it interfaces with the rest of the vehicle — speccing current-carrying capacities, finding the right voltage-and-current ratios, and validating that the pack is safe to run. Every PCB in the system, from cell-monitoring boards to pack control electronics, is designed, assembled, and tested in house.

The 2026 Pack

2026 · In Development

Cell: Molicel 21700 P45B
Architecture: 96s4p
Pack Voltage: 400V
Continuous Current: 180A DC

Right now the team's focus is fusible link design and cell stackup — sizing each fusible link so it protects the pack without nuisance-tripping, and figuring out how all 384 cells (96 in series, 4 in parallel) are mechanically arranged and secured.

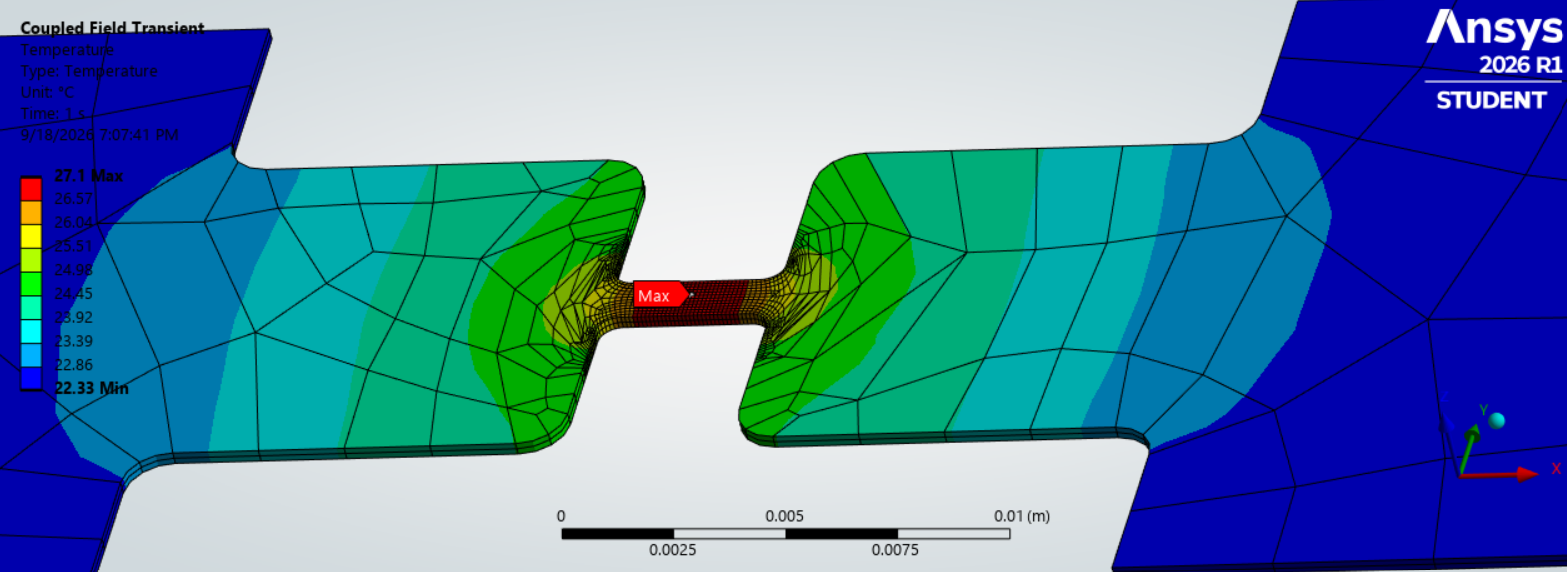

Ansys coupled-field transient thermal simulation of a fusible link, showing a temperature gradient concentrated at the link's narrow neck — Fig. 01 Coupled-field transient thermal simulation of a fusible link, showing temperature at the link's narrowest cross-section under fault current. Ansys 2026 R1.

Fig. 02 Fusible link testing — validating simulated behavior against real hardware.

The 2025 Pack

2025 · Previous Car

Cell: Melasta pouch cell
Architecture: 72s1p
Pack Voltage: 300V
Continuous Current: 250A DC

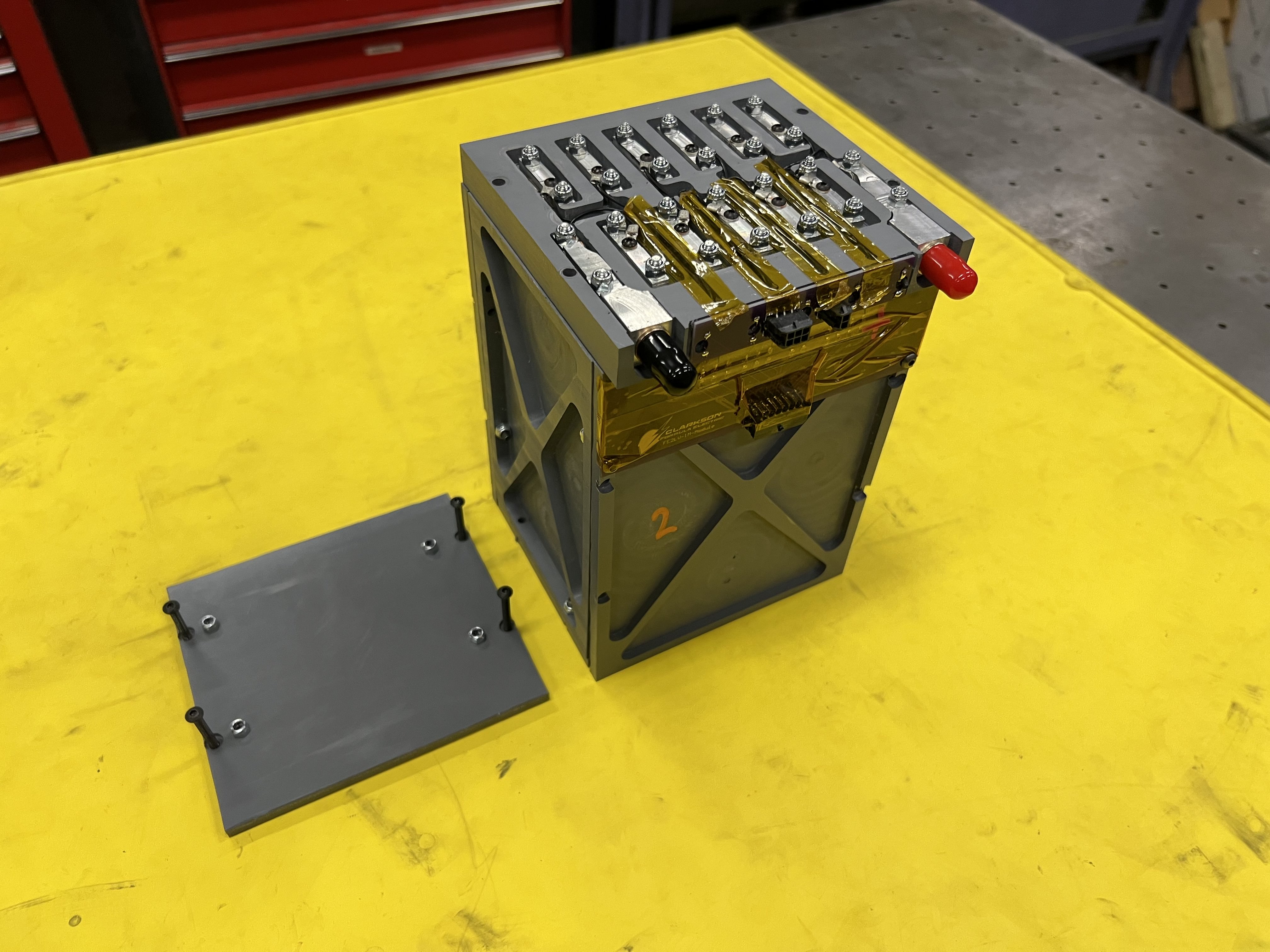

An opened battery module showing the machined clamps that secure and connect the pouch cells' tabs — Fig. 03 Battery module assembly — the machined clamps that secure and connect the pouch cells' tabs.

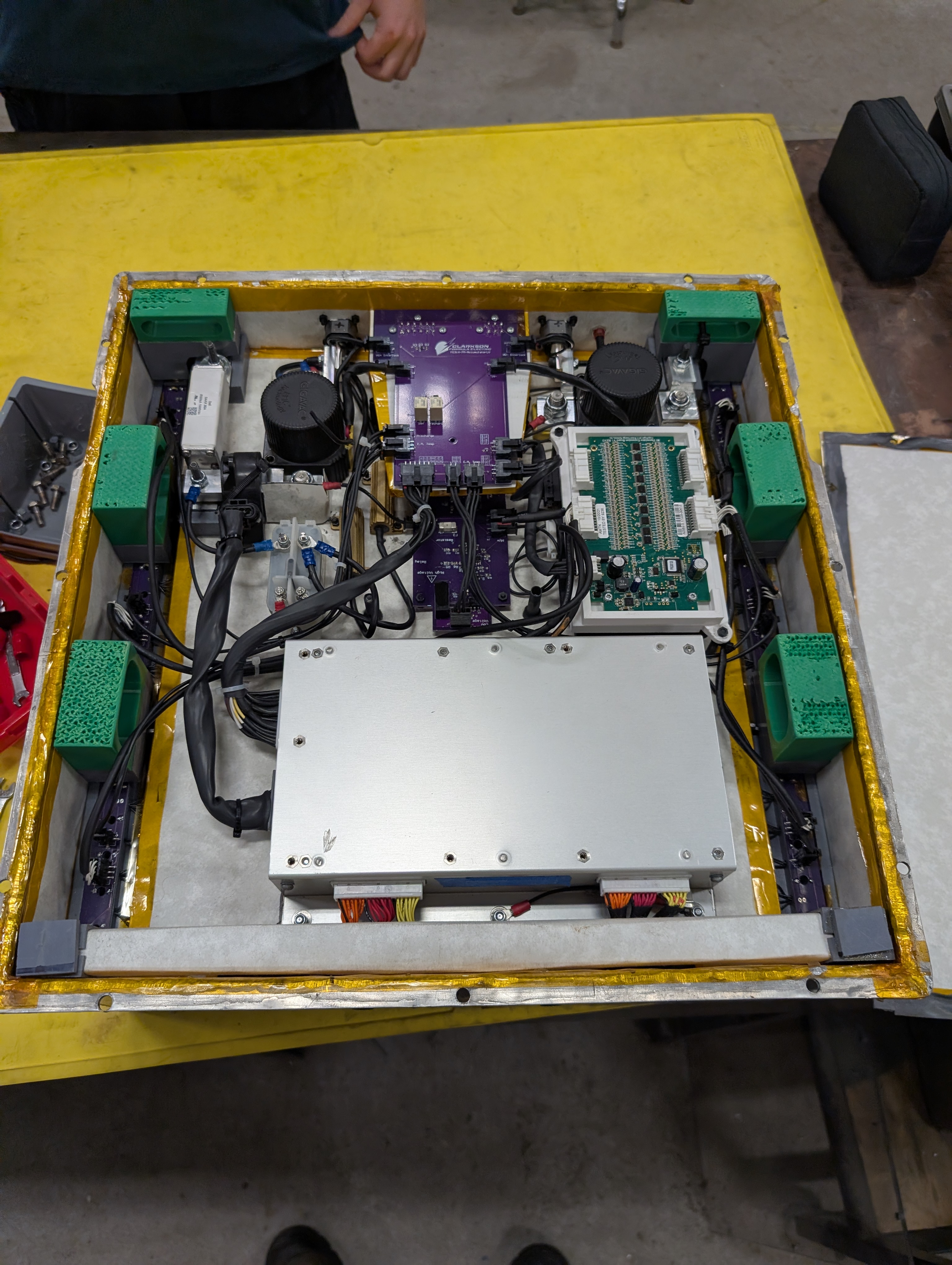

The accumulator container's internal electronics, including contactors, fusing, and battery-management boards — Fig. 04 Accumulator container — the pack's contactors, fusing, and battery-management electronics.

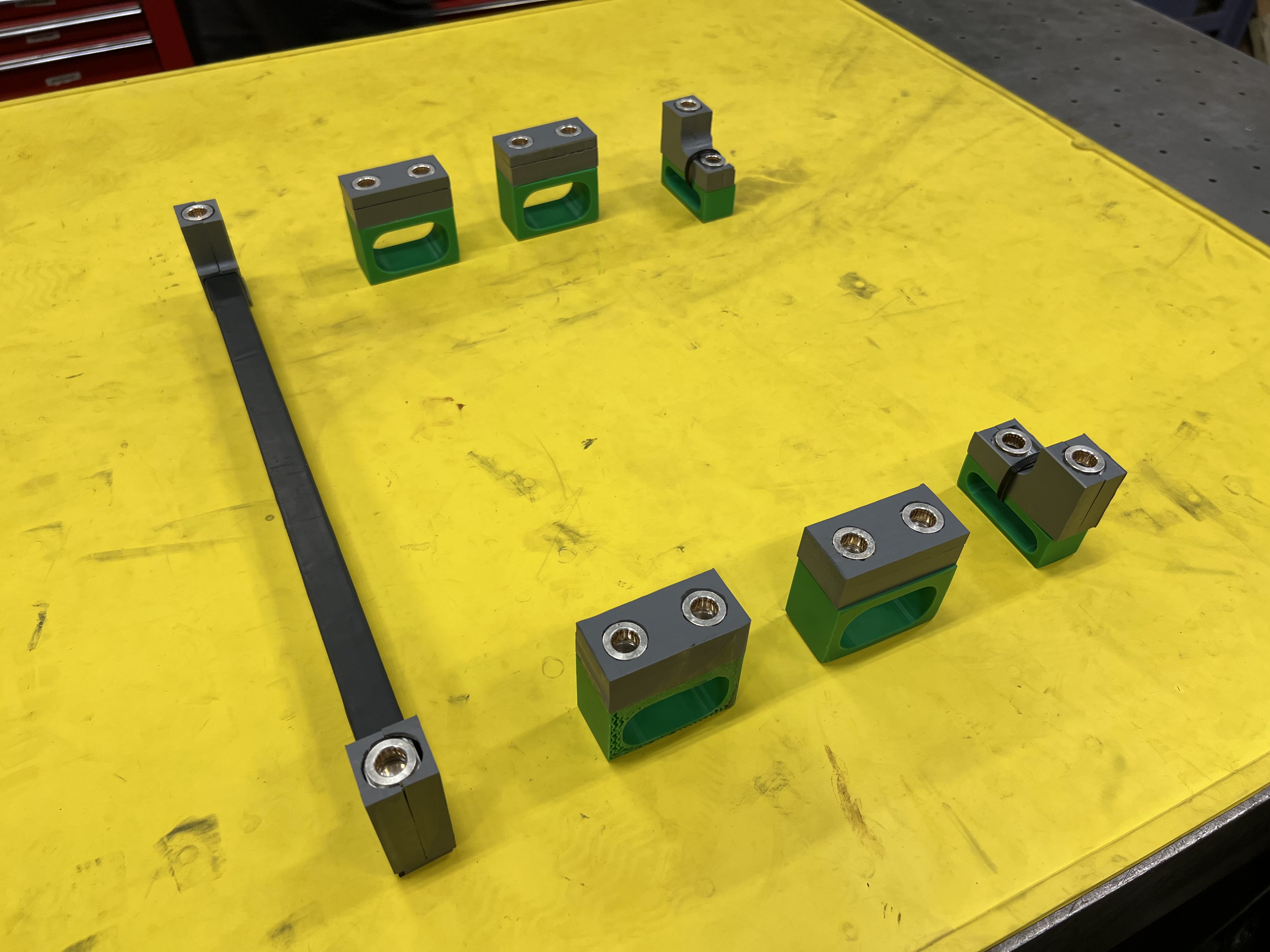

Maintenance-plug hardware, machined from metal and coated in plastic for electrical isolation — Fig. 05 Maintenance-plug hardware, machined in-house from metal and coated in plastic for electrical isolation.

Motor Controller

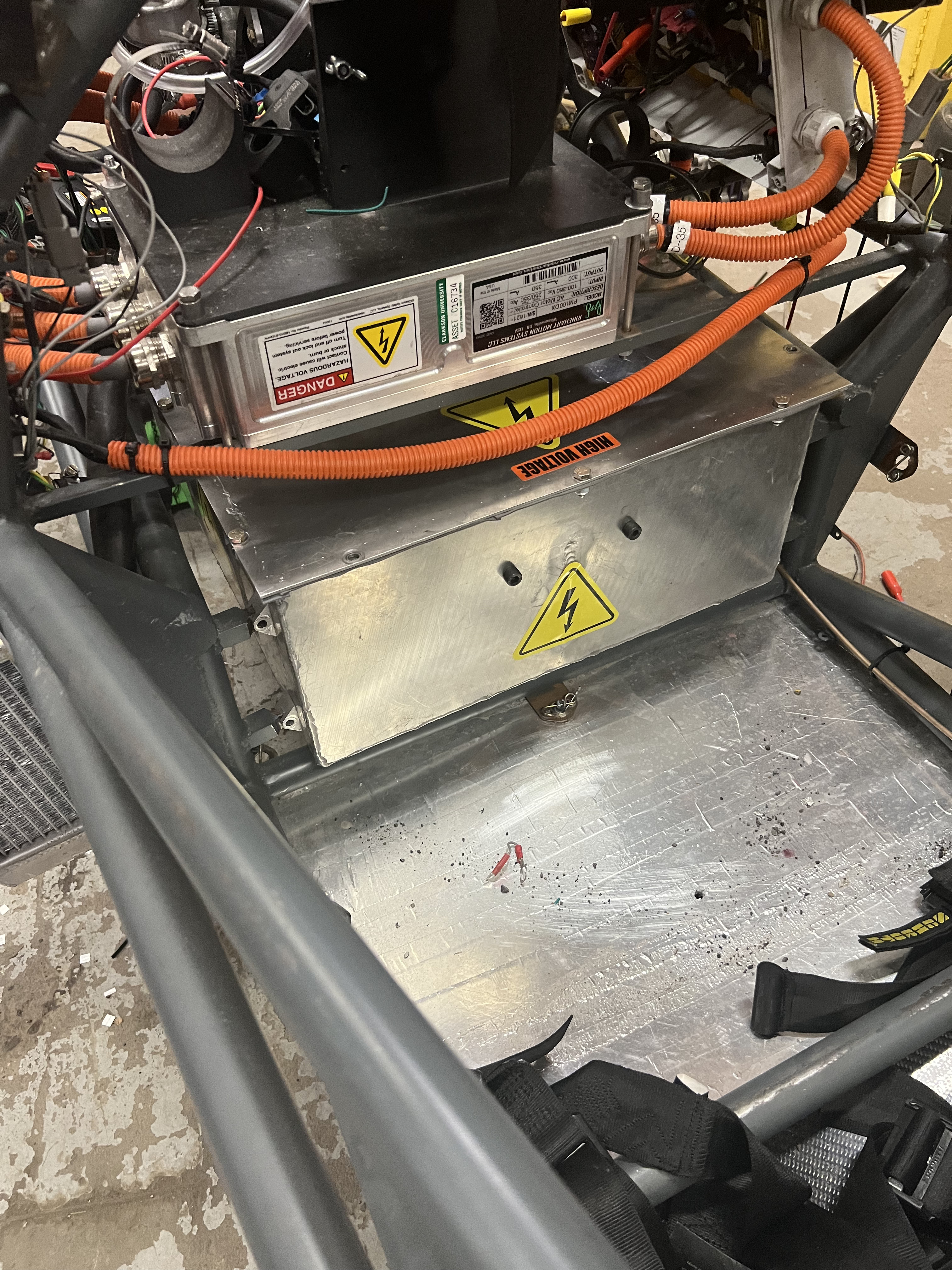

Both the 2025 and 2026 cars share the same motor controller: a Cascadia Motion PM100DX. Its nameplate is rated for 100–360 Vdc input and 300A output.
